The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.

The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Your advantages:

• Excellent deceleration action and no distortion of friction ring at high temperatures
• Substantial weight saving and therefore less unsprung mass
• Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
• "Hot spots" prevented by optimised design of ventilation channels
• 1:1 exchange of original disc possible
• Not subject to registration: general ABE certification supplied with disc
• No conversion required for brake tuning

suitable for:

PORSCHE 911 (991)

Typ: 4.0 GT3 RS / R

build year: 01.04.2011 -
KW / HP: 368/500
ccm: 3996
fuel type: Benzin
body: Coupe

Position: rear left

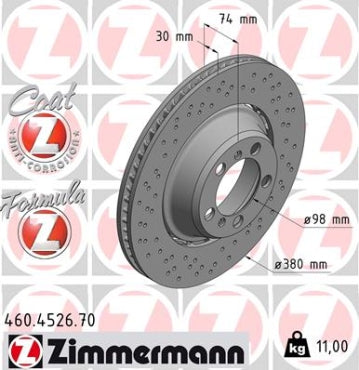

Brake Disc Specification:

brake discs art: belüftet, Gelocht, Bremsscheibe zweiteilig
height: 74
outer diameter (mm): 380
hole pitch / number: 7/5
thickness/strength (mm): 30
hole number: 5
bolt hole circle Ø (mm): 130
min. thickness (mm): 28
appr. stamp: ECE R90 APPROVED
quality: Alu-Topf schwimmend, Alu hub floating
centering (mm): 98
