The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.

The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

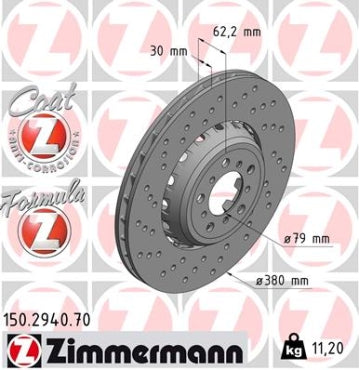

Brake Disc Specification:

brake system: for vehicles without M-Performance brakes, for vehicles without ceramic brakes
brake discs type: ventilated, Perforated
thickness (mm): 30
height: 62,4
information 2: Brake disc two-piece
outer diameter (mm): 380
hole pitch / number: 10/5
bolt hole circle 1 Ø (mm): 120
min. thickness (mm): 28,4
stroke bore Ø (mm): 79
quality: Alu hub floating

Certification: registration-free
